V100 Sine Vise
► Suitably using in grinding, cutting, drilling, marking and measuring.
► New structure design make easier operation with higher accuracy and stability.
► Optional block gauge for sine angle calculation see order no. 55070

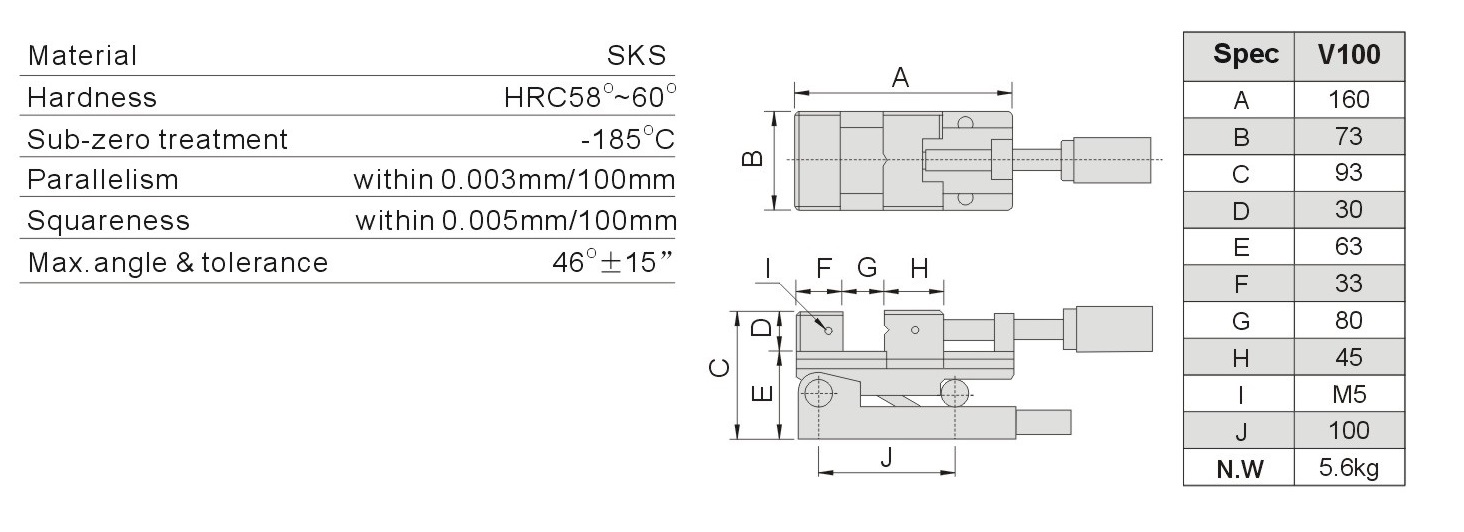

► Material SKS
► Hardness HRC58°~60°
► Sub-zero treatment:-185°C
► Parallelism:within 0.003mm/100mm
► Squareness:within 0.005mm/100mm
► Max.angle & tolerance:46°±15"
