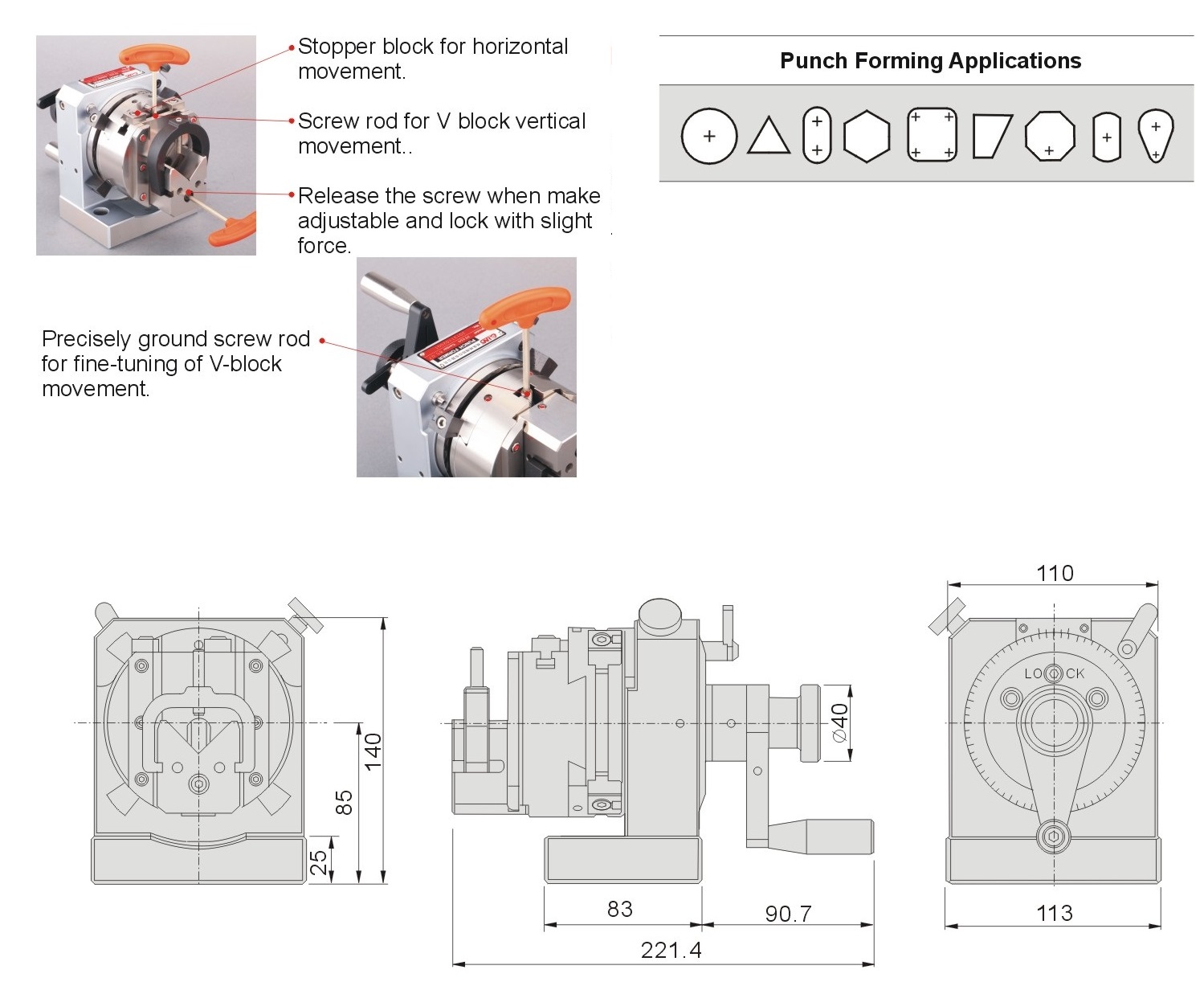

Fine-tuning Type Punch Former
► Suitable for surface grinder.
► Compact and durable structure which makes it capable of forming various shapes of punches.
► With slide plate horizontal movement, it can make eccentric radius punches as well as electrode.
► Stopper design for fast positioning polygonal punchese.
► Fine-tuning for vertical movement of V-block, easy for clamping workpiece and center calibration.
► Adopting high precision bearings and ball bearing to achieve higher stability and accuracy, it also makes longer lifecycle.
► Improvement in dust-proof and water resistance level.
Main parameters:
Center height………………………………………85 ± 0.5mm
Clamping dia. range of V-block……...……Ø 3~30mm
TraveI of V-block……………………………………………45mm
Slide plate horiztonal movement……….………±18mm
Indexer tooth q'ty & accuracy ….…….…24、15°± 10"
Clamping accuracy (50mm) ……….….…..……0.005mm
