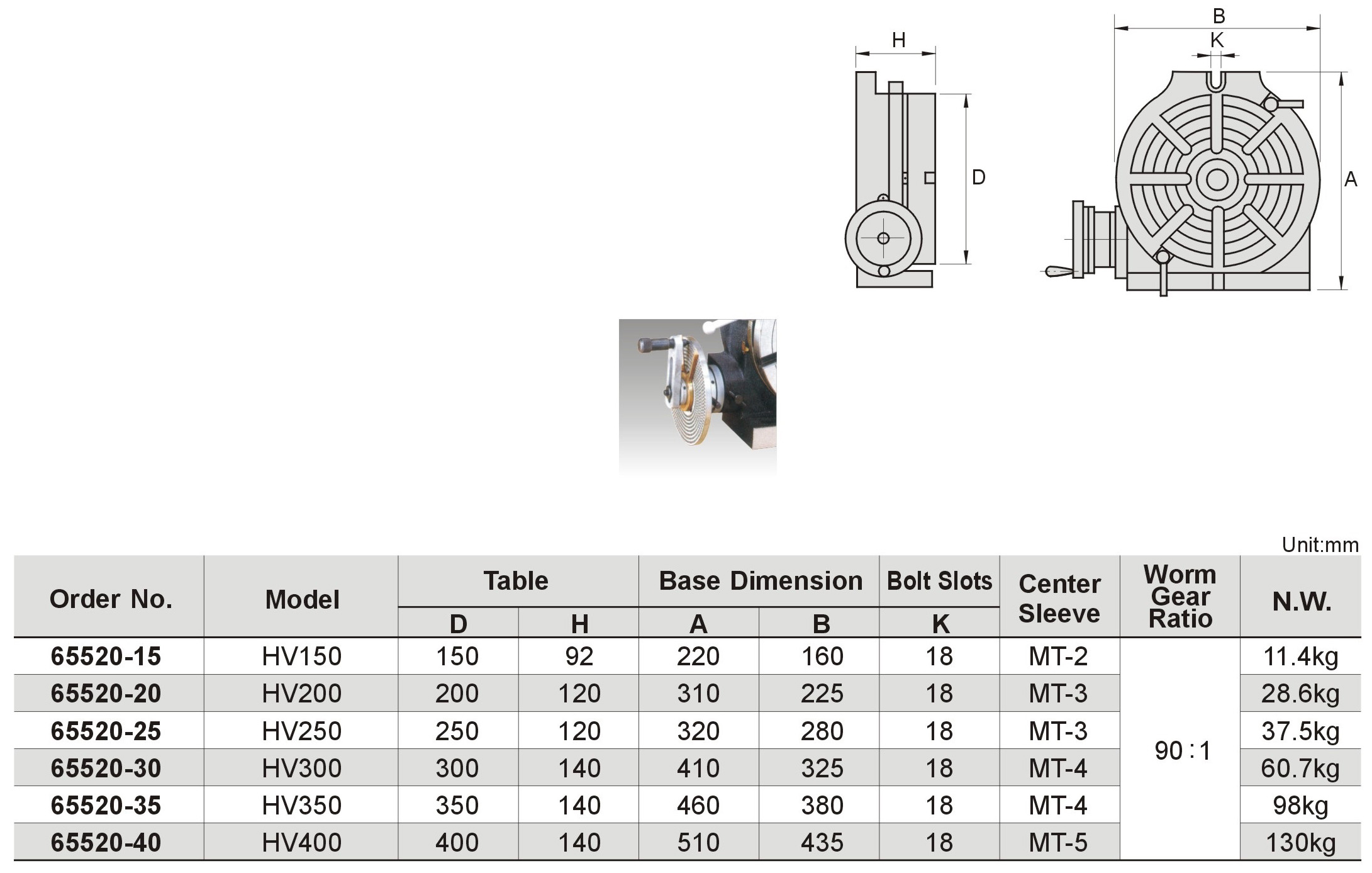

Horizontal & Vertical Rotary Table

► 360° graduation is etched on the circumference of work table and rotation is driven by a precision worm & gear under 90:1 reduction ratio. One turn of the handle moves the table through 4°.
► The dial is graduated in divisions of 1 min. and the vernier scale allows readings down to 10 sec.
► The Worm is hardened and precision ground to minimize wear out of the WORM GEAR.
► Both the upper and the bottom surface are precisly ground.
► Can be used both vertically and horizontally
► Suitable for arc cutting, counterbore & drilling, etc.
► REMARK:“ Operation and Service Manual “ is included for reference

Optional Accessories:
► Tailstock (Order no.65530)
► Dividing Plate Set (Order no.65570)
► 3-Jaw Chuck (Order no.66800)
