Dual Function Chamfering Machine

500B Features:
► Apply grinding wheel to chamfer, specially for hardened and special treatment workpieces.

500BR Features:
► Adopting Face milling for better smooth surface and energy saving.
► Suitable for any material, not including heat treatment material.

500C Features:
► Two in one type, interchangeable for grinding wheel & face mill
► Suitable for any material.

► Railway Spec.: 500mmx100mmx12mm, 500mmx40mmx12mm
► Machine Size:500mmx420mmx350mm

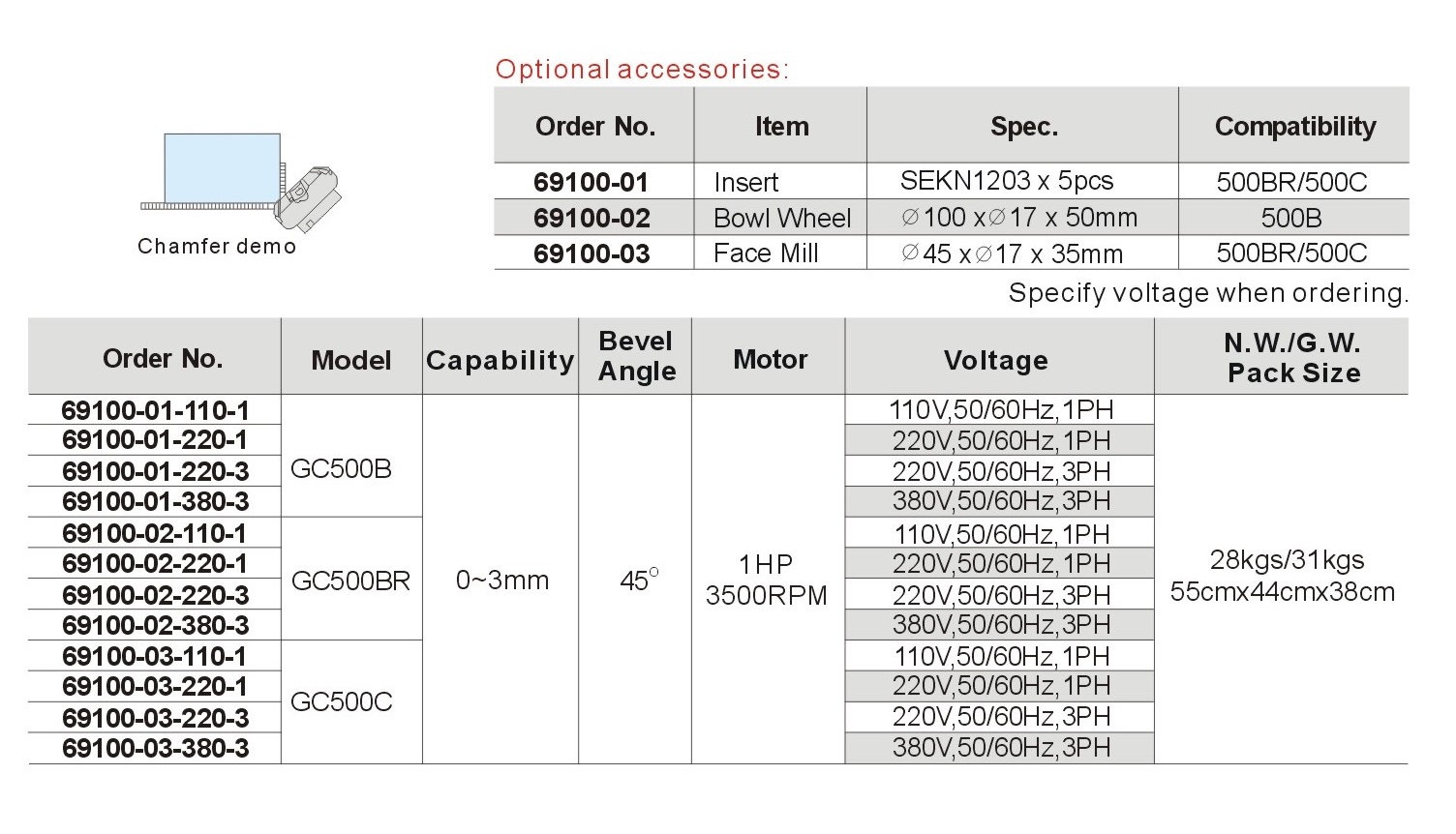

Standard Accessories:
► Insert Spec: SEKN1203x5pcs(500BR/C)
► Face Mill: Ø 45x Ø 17x35mm(500BR/C)
► Grinding Wheel: Ø 100x Ø 17x50mm (WA60,K5,VA6)(500B)

Dimensions
